Our basic mounting systems function on a 1/4" positive locking ball and socket mechanism, adjusting on 30 degree increments at each joint, providing an adjustable but solid mount.

Different arm lengths are available, ensuring you can get a mount that fits your needs and application. Single arms range from 4" - 14.5" of overall mount height/length.

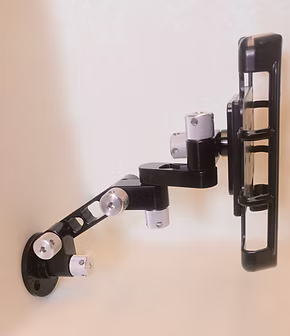

Arms can be linked together using an "Extension Knuckle". Linking arms allows us to create a mount with up to 28" of reach.

The "4 Link" is an add-on option, using a 4" arm and knuckles with a "Taper Fit", giving users the ability to swing their electronics easily.

The "Taper Fit" allows easy, unlimited adjustment, yet is still durable and rigid.

**Taper fit is only used in the "4 Link" and "Pivot Knuckles

The "Pivot Knuckle" is used to level the mount when the Base Plate is mounted on angled surfaces. This also uses our "Taper Fit" for unlimited adjustment.

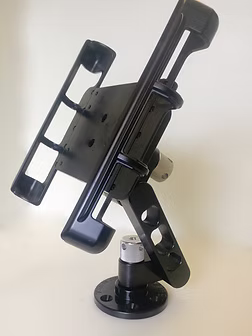

The "Round Base" is our most popular base plate. It measures 3.75" in diameter with a 4-hole pattern on a 2.75" diameter

The "Bullet Base" is for mounting in tighter spaces. It measures 3.75" x 2.1875" with a 2.5" x 1.5" 4-hole pattern. The Bullet base can also mount to up to 1" square tubing.
